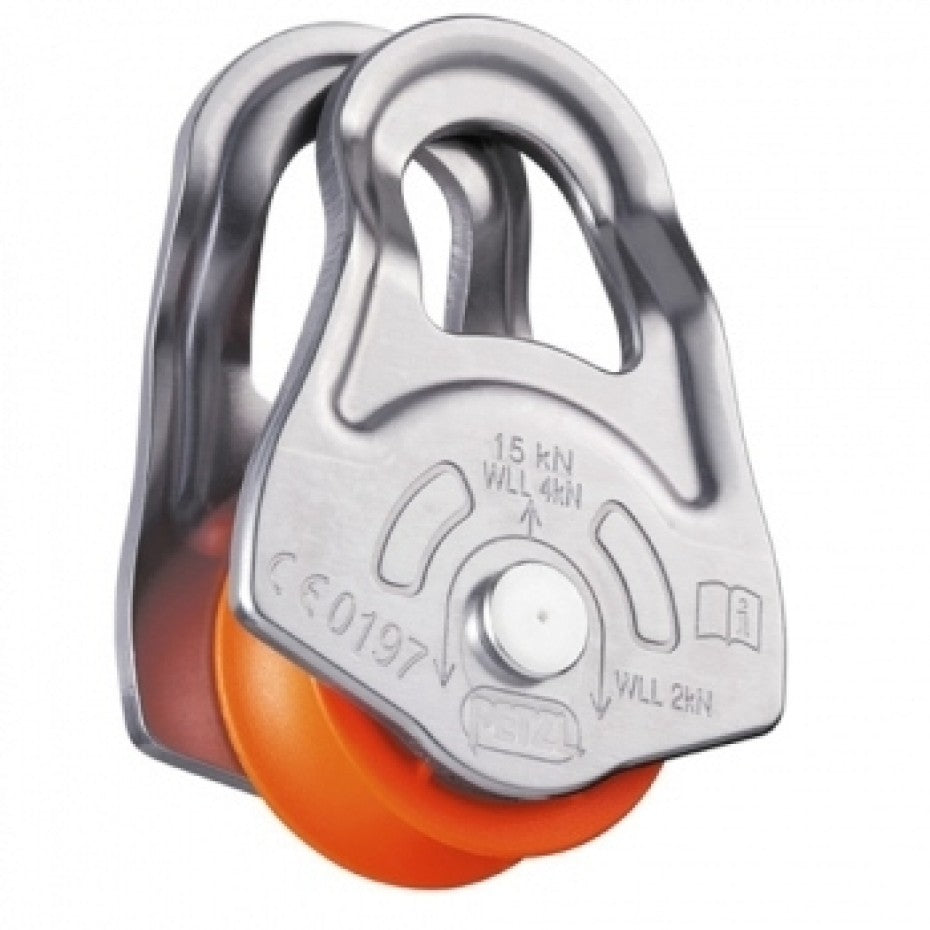

Description
- Quick and easy installation due to the swinging side plates
- Nylon sheave and aluminum side plates for excellent strength to weight ratio
Specifications
- Material(s): aluminum side plates, nylon sheave
- Certification(s): CE EN 12278, UIAA
| Min. rope diameter | 7mm |
| Max. rope diameter | 11mm |
| Sheave type | self-lubricating bushings |
| Sheave diameter | 25mm |
| Efficiency | 71% |
| Working load | on one rope strand: 2kN |
| Working load | 4kN |
| Breaking strength | 15kN |
